Services Provided

48 hours standard turnaround and 24 hour same day expedited turnaround available.

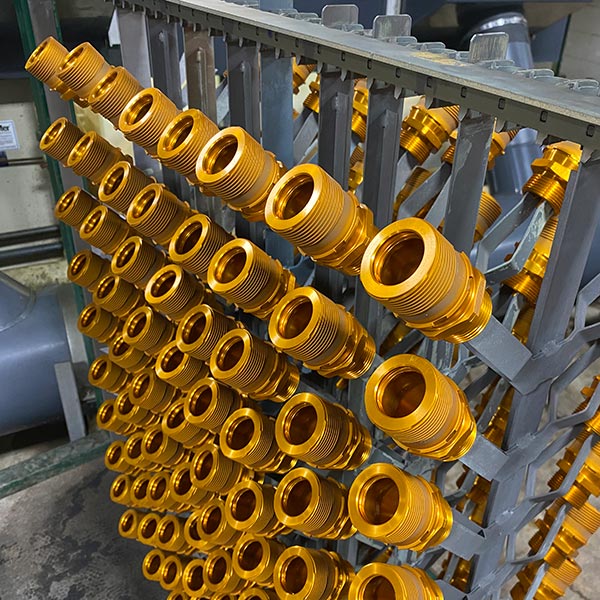

Type II Anodizing

This is a sulfuric acid process that forms a protective film of aluminum oxide on the surface of the metal. This coating produces a medium to hard protection, making the aluminum less susceptible to damage and corrosion while generating an electrically non-conductive exterior.

Sulfuric Anodize Type II provides:

• Corrosion Resistance
• Decorative/Cosmetic Appearance
• Stain Resistance
• Increased Durability / Lubricity
• Non-Electrical Conductive Surface

Type II Class 1: Non-dyed
Type II Class 2: Dyed – Red, Blue, Yellow, Black, Olive, Brown, Green, Orange, Violet, and Custom Colors (please call for availability)
Specification: MIL-A-8625F
Eaton Specification: ACES-1758P1
Sampling Plan: MIL-STD-105E
Tank Size: 48x24x38
Max Part Size: 46x21x36
Processing Time: 48 hours
Minimum Lot Charge: $50.00/$150.00 (Two Tone)

Blast/Micro Blast

This process prepares the surface for non-reflective matte finishes and paint adhesion. Blasting can also remove anodize for additional processing such as chromate conversion coating. Great Lakes Metal Finishing offers Aluminum Oxide 180 Grit Blast and Aluminum Oxide of various grit-blasts to accommodate any customer need. Other grit sizes and media may be available for an additional charge.

Work Area: 12x12x12
Max Part Size: 12x12x12
Processing Time: 48 hours
Minimum Lot Charge: $25.00

Chemical Conversion Coat

This process of coating provides excellent corrosion protection and acts as a base for painting. There are two classes of coatings, Class 1A and Class 3.

Mil-DTL-5541 (5S41?) Type I (hexavalent chrome) and Type II (tivalent). ROHS compliant for Type II.

Class 1A Coatings provide corrosion protection and paint finish adhesion to unpainted 100% aluminum and aluminum alloy surfaces.

Class 3 Chemical Coatings provide a corrosion preventive film for electrical and electronic applications where low resistance contacts are required.

Passivation

Quality Passivation at competitive prices ran to AMS 2700 Type 2 and Type 7. The main purpose of this process is to remove free iron from the surface of stainless steel parts that will be deposited during the manufacturing process. This helps prevent rust and can make parts look better with no dimensional change. Passivating with nitric acid will remove the free iron and remove contaminant residue, allowing the stainless steel to set up its own corrosion barrier.

Specification: AMS 2700E Type 2 & Type 7
Eaton Specification: ACES-16P50 (Type 2); ACES-16P51 (Type 7)
Sampling Plan: AMS 2700E

Tank Size: 42x17x32
Max Part Size: 40x15x25
Processing Time: 48 hours, but processing time for orders requiring humidity testing shall be 72 hours.
Minimum Lot Charge: $40.00

*Please call for other applicable specifications.

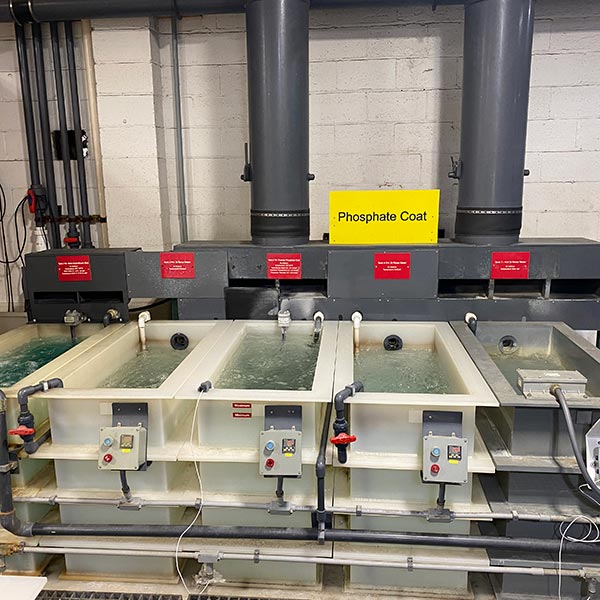

Phosphate Coating – Titanium

GLMF offers phosphate coat that complies with AMS 2486. Call for competitive pricing.

Specification: AMS 2486E
Eaton Specification: ACES-16P21
Sampling Plan: AMS 2486E

Tank Size: 12x12x12
Max Part Size: 10x10x6
Processing Time: 48 hours
Minimum Lot Charge: $200.00

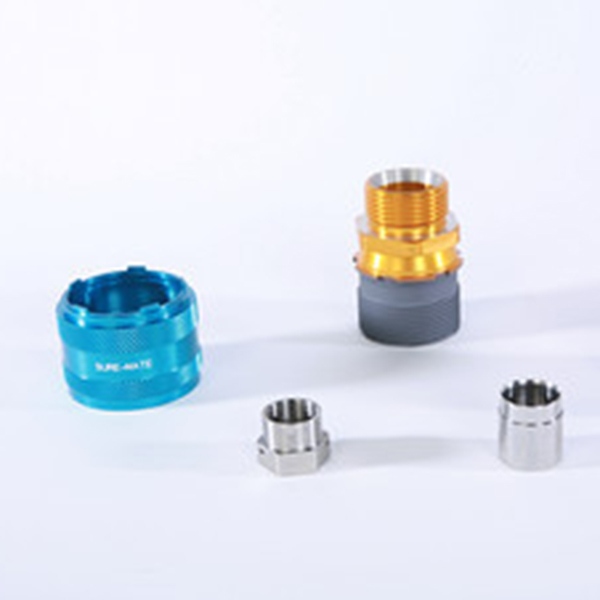

Multi-Process

Many projects require more than one of the processes listed above. In such a case, Great Lakes Metal Finishing offers multi-process operations to meet your needs no matter how complex. GLMF offers various masking techniques, Two Tone, and Micro-blast.

Other Processes

Chromate Conversion

Type I (Alodine) – Chem Film
Type II (Surtec-650) – Chem Film
Specification: MIL-DTL-5541F
Eaton Specification: ACES-16P25 (Type I); ACES-16P68
Sampling Plan: ASQ Z1.4 – 1993
Tank Size: 48x24x38
Max Part Size: 46x21x36
Processing Time: 48 hours
Minimum Lot Charge: $50.00 (Type I)/$100.00 (Type II)

Paint

Specification: MIL-PRF-22750G or to Print
Sampling Plan: MIL-STD-105E
Work Area: 35x35x33
Max Part Size: Depends on weight
Processing Time: 4-5 Days*
Minimum Lot Charge: $250.00*
*Processing times may exceed 4-5 days for orders which require non-stock primers/paint. Additional lot charges may apply if masking or blasting is required. Additional charges may apply if specialized tools or paint are required.

Dry Film

Specification: MIL-PRF-46010 or to Print
Eaton Specification: ACES-9
Sampling Plan: MIL-STD-105E
Work Area: 35x35x33
Max Part Size: Depends on weight
Processing Time: 4-5 Days*
Minimum Lot Charge: $100.00*
*Processing times may exceed 4-5 days for orders which require non-stock primers/paint. Additional lot charges may apply if masking or blasting is required. Additional charges may apply if specialized tools or dry film are required.
